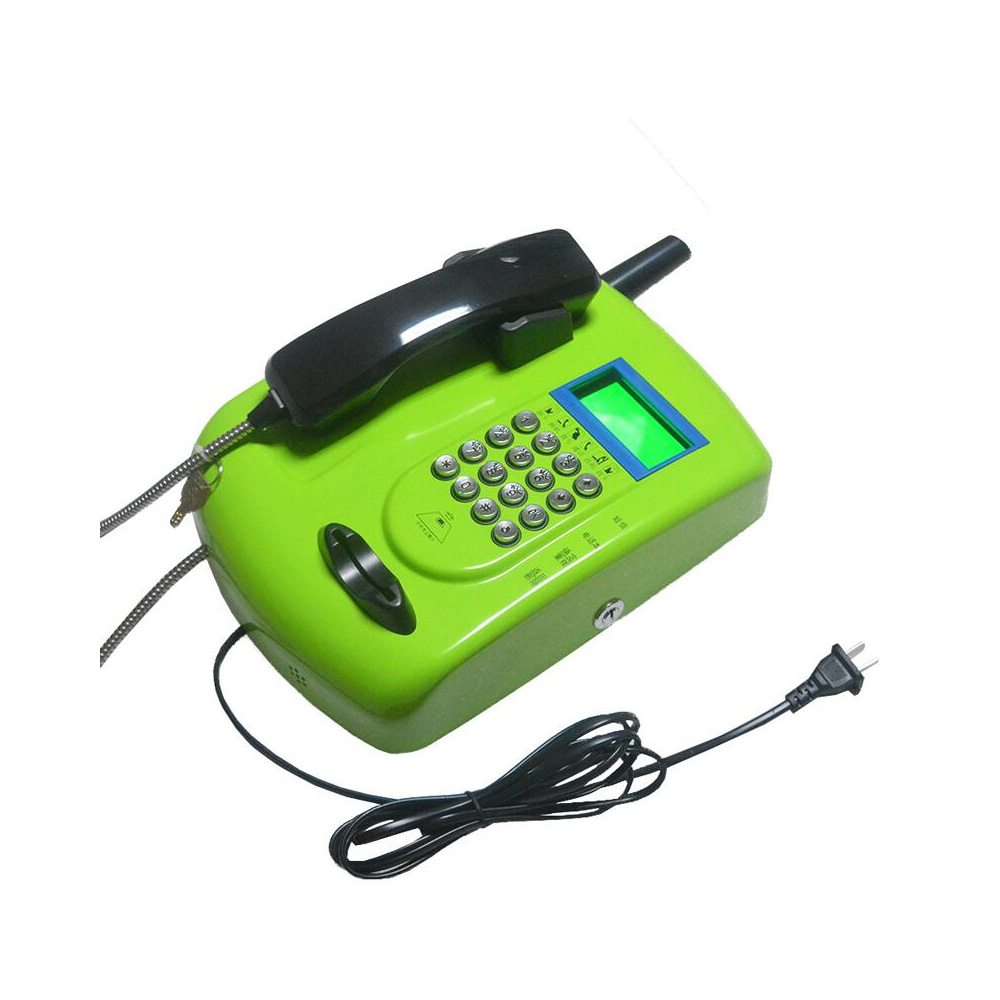

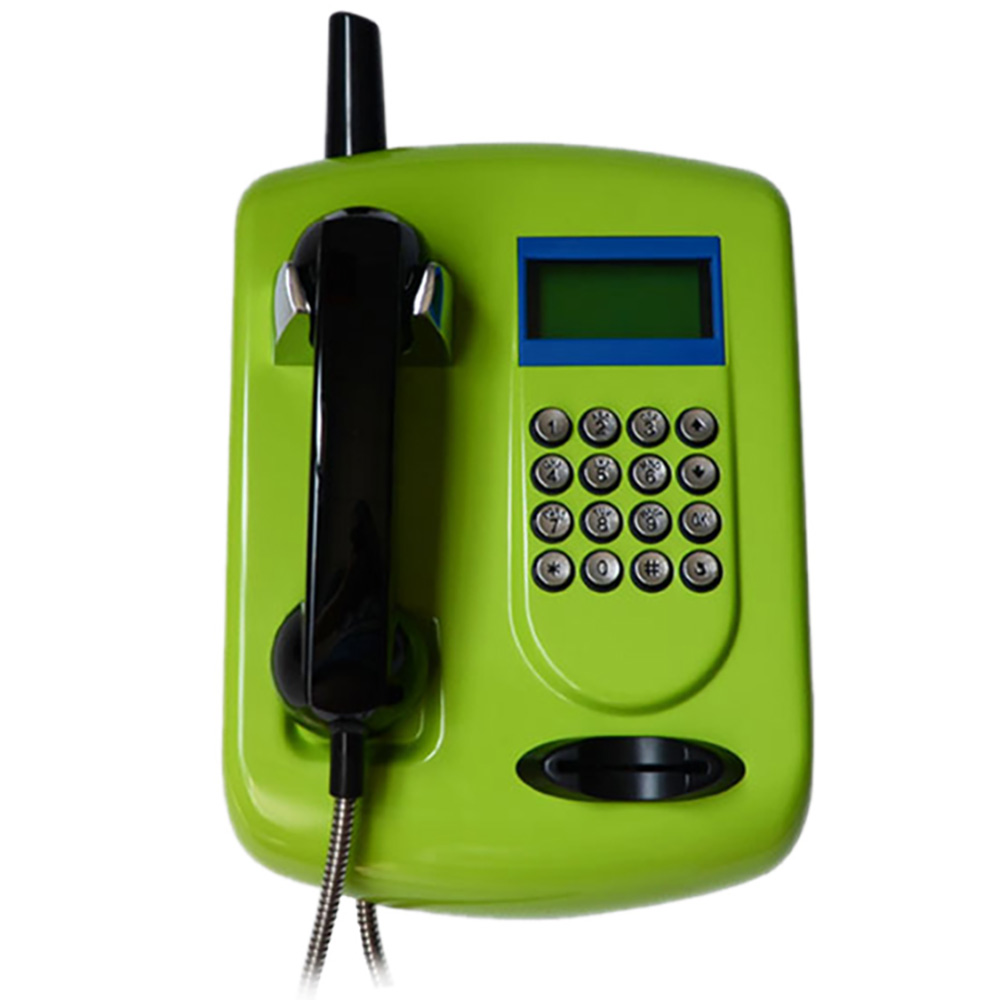

This is an outdoor wall-mounted payphone supporting payment with IC cards (SLE4442 card) or RFID cards (Mifare card), by inserting a 3G/4G SIM card inside. Designed with a metal casing and anti-vandalism parts for high performance, it is applicable for airports, scenic spots, streets, schools, factories and armies, jails, etc.

The Payphone is plug-&-play and easy to install. And the operator can define the call rate and check revenue records via the web-based NMS platform.

Basic Functions & Features

• Support making calls via IC cards or RFID cards.
• Function keys for follow-on calls and language selection.
• Complete visual prompts and tones offer a friendly operation instruction.
• Modular design and appropriate layout for convenient maintenance.
• Robust casing and superior sealing give high resistance to dust, water, corroding and vandalism.
• Self-diagnosis and fault prompt.
• Configurable call rate.
• Offer web-based Network Management System (NMS) to manage 100,000 sets of Payphone and provide exportable statistics reports.

Applications

Suited for outdoor or unsupervised environment (e.g. parks, streets, resorts, schools, jails).

• Supported Network/Technology

  • LTE FDD: B1/B3/B5/B8 (2100/1800/850/900 MHz)
  • LTE TDD: B38/B39/B40/B41 (2600/1900/2300/2500 MHz)
  • TDSCDMA: B34/B39 (2100/1900 MHz)
  • WCDMA: B1/B8 (2100/900MHz)
  • CDMA 1xEVDO: BC0 (800MHz)
  • GSM: B3/B8 (900/1800 MHz)

• Power Requirement

  • External adaptor (input: 100~240 VAC, 50/60 Hz / output: 12VDC, 1A)
  • Power consumption: 6 watts
  • Support solar power supply

• Compatible Card

  • SLE4442 chip card or Mifare RFID card

• Remote Management via NMS (optional)

  • Setting of call tariff rates
  • Revenue records of each payphone
  • Supervision on running status of each payphone
  • Generate top-up voucher code to add balance on cards

• Environmental Conditions

  • Temperature: -10°C to 60°C (operation)
  • Humidity: 10% ~ 95% non-condensing
  • Noise: ≤ 60 dB (A)
  • Atmosphere Pressure: 86 ~ 106 kPa

• Structural

  • Housing Material: Power-coated steel (SECC)
  • Antenna: 1x 3G/4G (screw mount on casing)
  • 1x 3G/4G SIM card slot
  • LCD: 4-line, 128X64 pixels, backlight supported, shock resistance ≥ 4,000N
  • Pull Resistance of Handset Cord: Not less than 150 kg
  • Lifespan of Metallic Keypad: > 1,000,000 operations
  • Lifespan of Hook Switch: > 500,000 operations
  • Dimensions: 300 mm x 250 mm x 130 mm (not including antenna)
  • Weight: 6.1 kg
  • Packing Dimensions: 450mm X 320mm x 190mm
  • Packing Weight: 6.9kg
